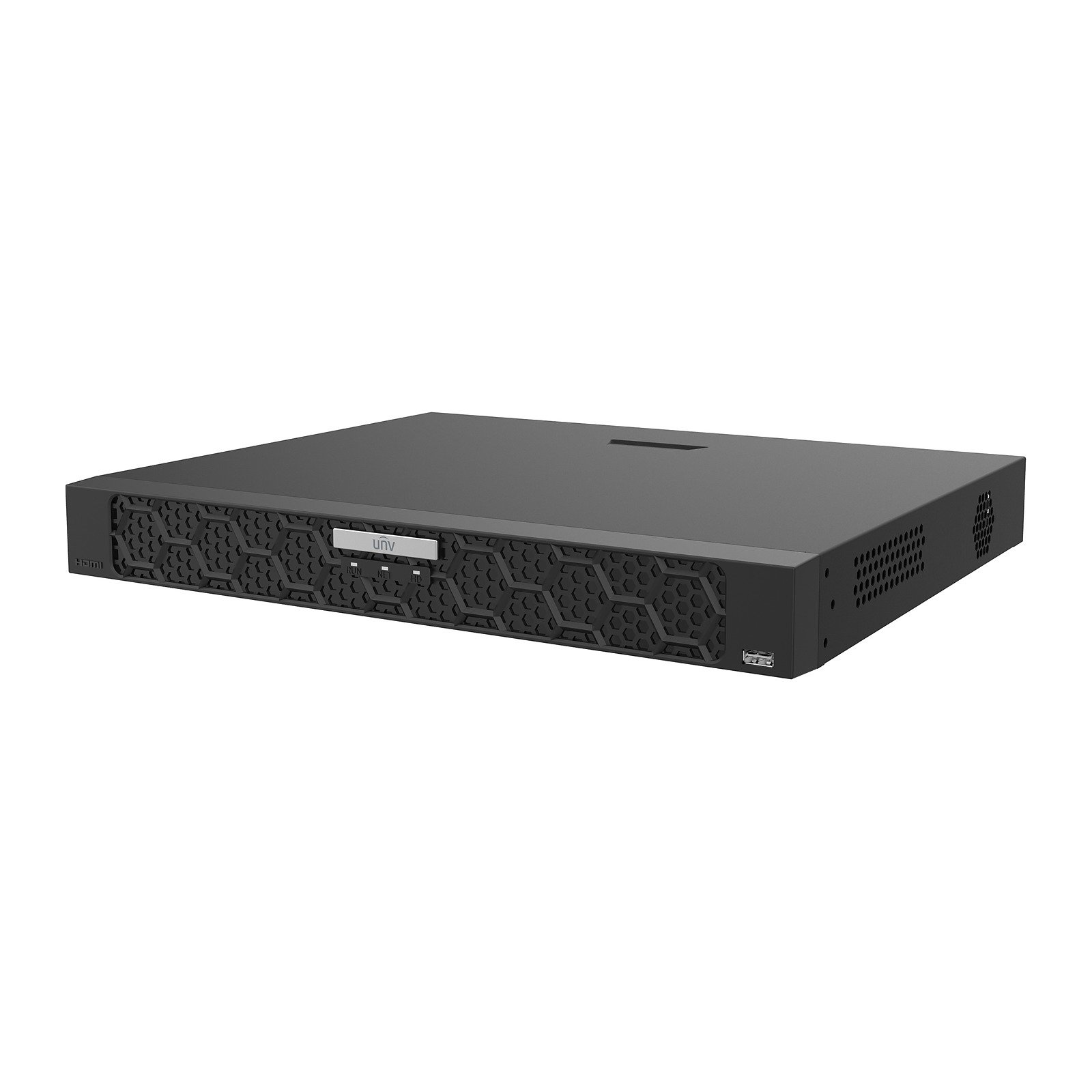

El NVR502-32E-IX-G es un grabador de red para hasta 32-ch cámaras IP, con un ancho de banda de entrada de 192 Mbps.
Para el almacenamiento y la visualización, acepta 2 SATA Interfaces, sale a pantalla por HDMI (4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1280 × 720/60 Hz), y por VGA (1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1280 × 720/60 Hz).
En obra: alimentación DC 12 V/5 A; trabaja en -10 ℃ a 55 ℃.
Especificaciones técnicas
Decodificación
| Formatos de decodificación | Ultra 265, H.265, H.264 |
|---|
| Capacidad de decodificación | Smart Off: H265/H264: 2 x 32 MP@30, 4 x 16 MP@30, 5 x 12 MP@30, 8 x 4K@30, 10 x 6 MP@30, 12 x 5 MP@30, 16 x 4 MP@30, 20 x 3 MP@30, 32 x 1080P@30Smart On: H265/H264: 1 x 32 MP@30, 2 x 16 MP@30, 2 x 12 MP@30, 4 x 4K@30, 5 x 6 MP@30, 12 x 5 MP@30, 8 x 4 MP@30, 10 x 3 MP@30, 16 x 1080P@30 |
|---|
| Detalle de decodificación | The resolution of each channel cannot exceed 4096 pixels in length or width |
|---|
| Compresión de audio | G.711A, G.711U |
|---|
Red
| Ancho de banda de entrada | 192 Mbps |
|---|
| Ancho de banda de salida | 192 Mbps |
|---|
| Max Users Can Be Added | 32 |
|---|
| Max Remote Users | 128 |
|---|
| Protocolos | TCP/IP, P2P, SMTP, NFS, RTSP, UPnP, NTP, DHCP, PPPoE, HTTP, DNS, DDNS, SNMP, IPv6, IPv4, HTTPS |
|---|
| Navegador (complemento) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
|---|
| Browser (Plugin-Free) | Chrome 57+, Edge 16+, Firefox 58+, Safari 11+ |
|---|
Entradas de vídeo y audio
| Entradas de vídeo IP | 32-ch |
|---|
| Entrada de audio RCA | 1-ch |
|---|
Entradas de periféricos
| Ip Speaker | 32-ch |
|---|
| POS | All channels |
|---|
Salidas de vídeo y audio
| Salida de vídeo | Compatible 2-ch HDMI, 2-ch VGA, HDMI1 y VGA1 simultaneous output, HDMI2 y VGA2 simultaneous output, HDMI1/VGA1 y HDMI2/VGA2 independent output |
|---|
| Salida HDMI | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1280 × 720/60 Hz |
|---|
| Salida VGA | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1280 × 720/60 Hz |
|---|
| HDMI Standard | HDMI1.4 |
|---|
| RCA Audio Output | 2-ch |
|---|
| Vista en vivo | 1/4/6/8/9/16/25/32 |
|---|
| Default Num of Live Screen | 32 |
|---|
| Modo pasillo | 3/4/5/7/9/10/12/16/32 |
|---|
| Playback Screen | 1/4/9/16 |
|---|
| Corridor Mode Screen of Playback | 1/3 |
|---|
Audio bidireccional
| Audio bidireccional | 1-ch, RCA (Using the audio input y output) |
|---|
Capturas
| Capturas por FTP, horario o evento | 16-ch snapshot (máx. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution) |
|---|
Grabación
| Resolución de grabación | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
|---|
| Num of Concurrent Playback | 32-ch |
|---|
| Reproducción simultánea local | 16-ch |
|---|
Funciones inteligentes
| Analítica en la cámara | All channels (hasta 16 images/s in total) Face Detection, Detección de rostros, Vehículo Detection (LPR), temperatura Detection, SIP, UMD, Video Metadata, Traffic Monitoring, People Counting |
|---|
| Smart by NVR | Face Detection, Detección de rostros, Smart Intrusión Prevention (SIP), analysis, Elevator Entrance Detection, Illegally Parked Motor Vehículo, Evacuation Route Obstruction, People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Plate Comparison |
|---|
| Smart by NVR Analyzer Mode | Mixed Mode (SIP+analysis+People Counting), Mixed Mode (+Mixed-Traffic Dection+AcuSearch/AcuTrack), Modes cannot active simultaneously, only one mode can active at a time. |
|---|
| VCA Search | Detección de rostros Search, Behavior Search, Motor Vehículo Search, Non-Motor Vehículo Search, Persona Body Search, General Search, People Counting Report, SmartSearch+, AcuSearch, AcuTrack, SeekFree |
|---|
Búsqueda inteligente AcuSearch
| Acu Search Performance | All channels with UNV SIP/UMD Camera, Hasta 16-ch with normal camera (UNV y Third-part brand, 16-ch 2 MP, 8-ch 4 MP, 4-ch 4K) |
|---|
AcuTrack
| Acu Track Performance | All channels with UNV SIP/UMD Camera, Hasta 16-ch with normal camera (UNV y Third-part brand, 16-ch 2 MP, 8-ch 4 MP, 4-ch 4K) |
|---|
SeekFree
| SeekFree Performance | All channels with UNV SIP/UMD Camera, Hasta 16-ch with normal camera (UNV y Third-part brand, 16-ch 2 MP, 8-ch 4 MP, 4-ch 4K) |
|---|
| SeekFree Language | Inglés |
|---|
Detección de rostros
| face detection by NVR | All channels with UNV Face Detection Camera, Hasta 16-ch with normal camera (UNV y Third-part brand, 16-ch 2 MP, 8-ch 4 MP, 4-ch 4K) |
|---|
| Search by Image | Compatible |
|---|
Telefonía SIP
| SIP by NVR with normal cameras | Hasta 16-ch with normal camera (UNV y Third-part brand, 16-ch 2 MP, 8-ch 4 MP, 4-ch 4K) |
|---|
analysis
| analysis with normal cameras | Hasta 16-ch with normal camera (UNV y Third-part brand, 16-ch 2 MP, 8-ch 4 MP, 4-ch 4K) |
|---|
| analysis Type | No Helmet Detection, No Chef Hat Detection, No Work Clothes Detection, Smoking Detection, Smoke y Fire Detection, Calling Detection, No Mask Detection, Rat Detection, Long Stay Detection, Fall Detection, Fight Detection, Absence Detection, Climbing Detection, Sleep on Duty Detection, People Counting, Using Mobile Phone Detection, , People Dispersion, Quick Moving, No Reflective Clothing Detection |
|---|
Video Metadata
| Video Metadata by NVR with normal cameras | Hasta 16-ch with normal camera (UNV y Third-part brand, 16-ch 2 MP, 8-ch 4 MP, 4-ch 4K) |
|---|
| Video Metadata Type | Motor Vehículo: Vehículo Type, Vehículo Color, Vehículo Brand, Direction, Plate Type, Plate Color, Persona Body: Gender, Age, Mask, , Bag Style, Direction, Upper Garment Length, Lower Garment Length, Upper Garment Color, Lower Garment Color, Non-Motor Vehículo: Non-Motor Vehículo Type, Direction, Gender, Age, Upper Garment Length, Upper Garment Color |
|---|
Comparación de placas
| Vehicle Number Library | Hasta 5 vehicle picture libraries, with hasta 25,000 vehicle pictures in total |
|---|
Capacity of Smart Snapshots
| Capacity of Snapshot Records | 2 millions records for face snapshot, 2 millions records for analysis y SIP, 2 millions records for vehicle snapshot |
|---|
Alarmas
| Alarmas generales | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Automático Tracking, Motion Detection, Tampering, Persona Body Detection, Video Loss, Audio Detection, Alarm Input |
|---|
| Alarmas de alerta | IP Conflict, de red Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded |
|---|
Discos duros
| Puertos SATA | 2 SATA Interfaces |
|---|
| Capacidad | Hasta 24 TB for each HDD (The maximum HDD capacidad varies with environment temperatura y hard disk size, The environment temperatura for use should not exceed 40°C) |
|---|
| Disk Group | Compatible |
|---|
| Redundant Storage | Compatible |
|---|
Conexiones externas
| Interfaz de red | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
|---|
| Network Working Mode | Muli-access, load balance, de red fault-tolerance |
|---|
| Puertos USB | Front panel: 1 × USB2.0, Rear panel: 2 × USB3.0 |
|---|
| RS485 | 1 |
|---|
| Puerto RS232 | 1 |
|---|
| Entradas de alarma | 16-ch |
|---|
| Alarm Out | 4-ch |
|---|
| Power Output | 12 V |
|---|
| Buzzer | Compatible |
|---|
| Alimentación | DC 12 V/5 A |
|---|
Condiciones de trabajo
| Temperatura de trabajo | -10 ℃ a 55 ℃ |
|---|
| Humedad de trabajo | ≤ 90% HR (sin condensación) |
|---|
| Power Consumption (without HDD) | ≤25 W |
|---|
| Heat Dissipation | Fan, Radiator |
|---|
Dimensiones
| Weight (without HDD) | 1.87 KG |
|---|
| Height | 1U |
|---|
| Dimensiones | 380 mm × 322.4 mm × 53 mm (15.0″ × 12.7″ × 2.1″ ) |
|---|
Idiomas de la interfaz
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, Inglés, Vietnamese, Thai, Turkish, Español (Latin America), Portuguese (Brazil), Español, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
|---|
Certificaciones
| Certificaciones | CE; FCC; UL; RoHS; WEEE |
|---|
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
|---|
| FCC | Part15 Subpart B |
|---|
Feature Supported
| Downlink ONVIF | Compatible (Profile S) |
|---|
| Uplink ONVIF | No aplica |
|---|
| NAS | Compatible |
|---|
| Ucode Basic Mode | Compatible |
|---|
| Ucode Advanced Mode | Compatible |
|---|
Normativa
Referencia del fabricante: NVR502-32E-IX-G. Datos tomados de la ficha técnica oficial de Uniview. Producto original con garantía, distribuido por Mundo Tech Colombia. ¿Eres instalador o integrador? Inicia sesión con tu cuenta mayorista para ver tu precio.
