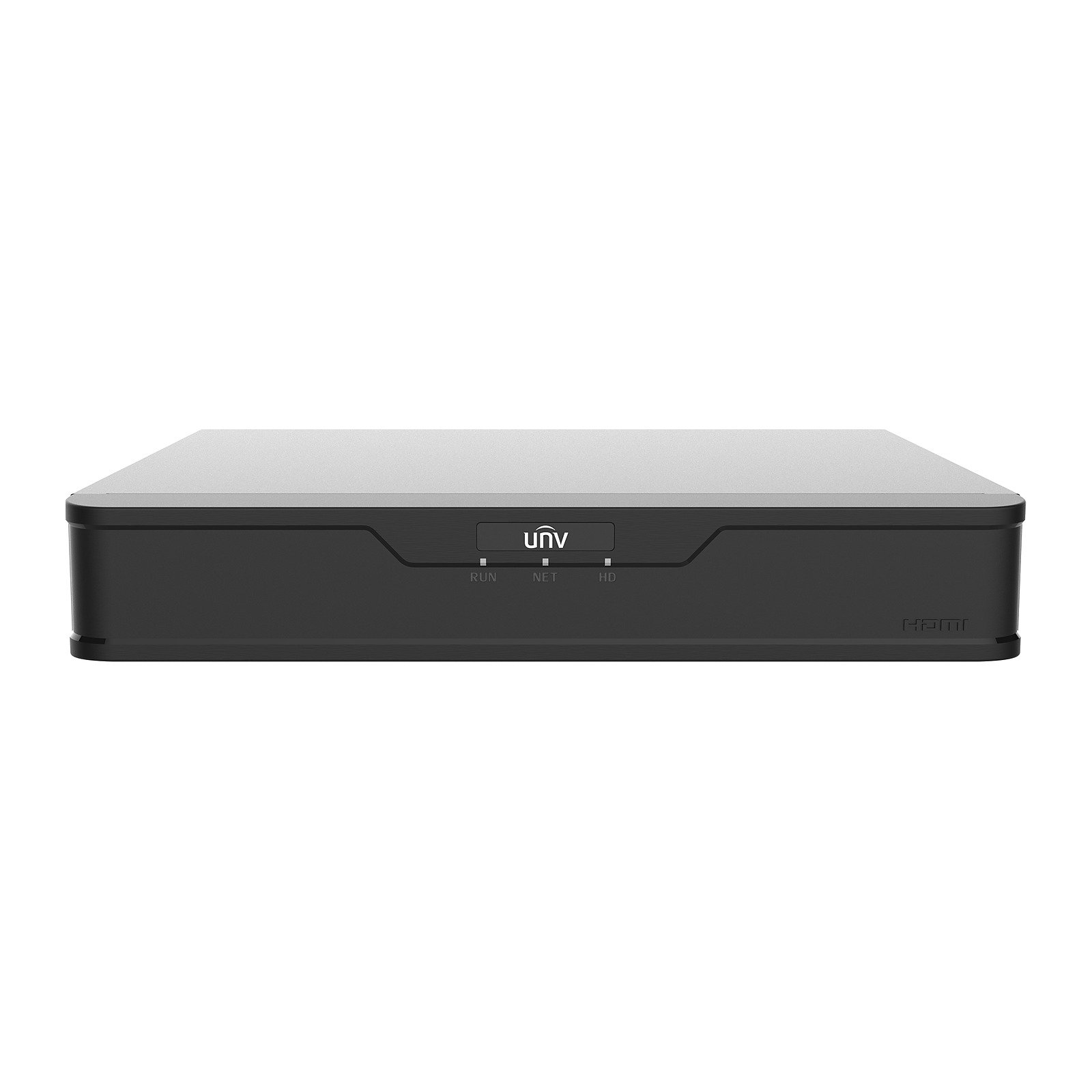

El NVR301-08E-IQ es un grabador de red para hasta 8-ch cámaras IP, con un ancho de banda de entrada de 80 Mbps.
Para el almacenamiento y la visualización, acepta 1 SATA Interface, sale a pantalla por HDMI (4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1280 × 720/60 Hz), y por VGA (1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1280 × 720/60 Hz).
En obra: alimentación DC 12 V/2 A; trabaja en -10 ℃ a 50 ℃.
Especificaciones técnicas
Decodificación
| Capacidad de decodificación | Smart Off：1 x 12 MP@30, 2 x 4K@30, 4 x 4 MP@30, 8 x 1080P@30Smart On：2 x 4K@30, 4 x 4 MP@30, 8 x 1080P@30 |
|---|
| Detalle de decodificación | The resolution of each channel cannot exceed 8192 pixels in length y 4096 pixels in width |
|---|
| Compresión de audio | G.711A, G.711U |
|---|
Red
| Ancho de banda de entrada | 80 Mbps |
|---|
| Ancho de banda de salida | 80 Mbps |
|---|
| Max Users Can Be Added | 32 |
|---|
| Max Remote Users | 128 |
|---|
| Protocolos | TCP/IP, P2P, SMTP, NFS, RTSP, UPnP, NTP, DHCP, PPPoE, DNS, HTTP, DDNS, IPv6, IPv4, HTTPS |
|---|
| Navegador (complemento) | Chrome 45+, Edge 79+, Firefox 52+ |
|---|
| Browser (Plugin-Free) | Chrome 57+, Edge 16+, Firefox 58+, Safari 11+ |
|---|
Entradas de vídeo y audio
| Entradas de vídeo IP | 8-ch |
|---|
| Entrada de audio RCA | 1-ch |
|---|
Entradas de periféricos
| Ip Speaker | 32-ch |
|---|
| POS | All channels |
|---|
Salidas de vídeo y audio
| Salida de vídeo | Compatible 1-ch HDMI, 1-ch VGA, HDMI y VGA simultaneous output |
|---|
| Salida HDMI | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1280 × 720/60 Hz |
|---|
| Salida VGA | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1280 × 720/60 Hz |
|---|
| HDMI Standard | HDMI1.4 |
|---|
| RCA Audio Output | 1-ch |
|---|
| Vista en vivo | 1/4/6/8/9 |
|---|
| Default Num of Live Screen | 9 |
|---|
| Modo pasillo | 3/4/5/7/9 |
|---|
| Playback Screen | 1/4/9 |
|---|
| Corridor Mode Screen of Playback | 1/3 |
|---|
Audio bidireccional
| Audio bidireccional | 1-ch, RCA (Using the audio input y output) |
|---|
Capturas
| Capturas por FTP, horario o evento | 4-ch snapshot (máx. 3072 × 2048 video resolution, with D1 snapshot resolution) |
|---|
Grabación
| Resolución de grabación | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
|---|
| Num of Concurrent Playback | 16-ch |
|---|
| Reproducción simultánea local | 8-ch |
|---|
Funciones inteligentes
| Analítica en la cámara | All channels (hasta 8 images/s in total) Face Detection, Detección de rostros, Vehículo Detection (LPR), temperatura Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
|---|
| Smart by NVR | Face Detection, Detección de rostros, Smart Intrusión Prevention (SIP), Ultra Motion Detection (UMD) |
|---|
| Smart by NVR Analyzer Mode | Single Mode (), Single Mode (SIP), Single Mode (UMD), Single Mode (AcuSearch/AcuTrack), Modes cannot active simultaneously, only one mode can active at a time. |
|---|
| VCA Search | Detección de rostros Search, Motor Vehículo Search, Non-Motor Vehículo Search, Persona Body Search, General Search, People Counting Report, Heat Map |
|---|
Búsqueda inteligente AcuSearch
| Acu Search Performance | All channels with UNV SIP/UMD Camera |
|---|
AcuTrack
| Acu Track Performance | All channels with UNV SIP/UMD Camera |
|---|
SeekFree
| SeekFree Performance | All channels with UNV SIP/UMD Camera |
|---|
| SeekFree Language | Inglés |
|---|
Detección de rostros
| face detection by NVR | Hasta 4-ch with UNV Face Detection Camera, Hasta 1-ch with normal camera (UNV y Third-part brand, 1-ch 2 MP) |
|---|
| Search by Image | Compatible |
|---|
Comparación de placas
| Vehicle Number Library | Hasta 5 vehicle picture libraries, with hasta 25,000 vehicle pictures in total |
|---|
Telefonía SIP
| SIP by NVR with normal cameras | Hasta 2-ch with normal camera (UNV y Third-part brand, 2-ch 2 MP, 1-ch 4 MP) |
|---|
UMD
| UMD by NVR with normal cameras | Hasta 4-ch with normal camera (UNV y Third-part brand, 4-ch 2 MP, 2-ch 4 MP, 1-ch 4K) |
|---|
Capacity of Smart Snapshots
| Capacity of Snapshot Records | 500 thousand records for face snapshot, 500 thousand records for vehicle snapshot, 500 thousand records for SIP |
|---|
Alarmas
| Alarmas generales | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Automático Tracking, Motion Detection, Tampering, Persona Body Detection, Video Loss, Audio Detection, Alarm Input |
|---|
| Alarmas de alerta | IP Conflict, de red Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
|---|
Idiomas de la interfaz
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, Inglés, Vietnamese, Thai, Turkish, Español (Latin America), Portuguese (Brazil), Español, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
|---|
Discos duros
| Puertos SATA | 1 SATA Interface |
|---|
| Capacidad | Hasta 24 TB for each HDD (The maximum HDD capacidad varies with environment temperatura y hard disk size, The environment temperatura for use should not exceed 40°C) |
|---|
Conexiones externas
| Interfaz de red | 1 RJ45 10 M/100 M self-adaptive Ethernet Interface |
|---|
| Network Working Mode | Single puertos, not involved |
|---|
| Puertos USB | Rear panel: 2 × USB2.0 |
|---|
| Entradas de alarma | 4-ch |
|---|
| Alarm Out | 1-ch |
|---|
| Buzzer | Compatible |
|---|
| Alimentación | DC 12 V/2 A |
|---|
Condiciones de trabajo
| Temperatura de trabajo | -10 ℃ a 50 ℃ |
|---|
| Humedad de trabajo | ≤ 95% HR (sin condensación) |
|---|
| Power Consumption (without HDD) | ≤ 15 W |
|---|
| Heat Dissipation | Radiator |
|---|
Dimensiones
| Weight (without HDD) | ≤ 0.98Kg |
|---|
| Height | 1U |
|---|
| Dimensiones | 260 mm x 215 mm x 46.6 mm (10.2″×8.5″×1.8″) |
|---|
Certificaciones
| Certificaciones | CE; FCC; UL; RoHS; WEEE |
|---|
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130 |
|---|
| FCC | Part15 Subpart B |
|---|
Referencia del fabricante: NVR301-08E-IQ. Datos tomados de la ficha técnica oficial de Uniview. Producto original con garantía, distribuido por Mundo Tech Colombia. ¿Eres instalador o integrador? Inicia sesión con tu cuenta mayorista para ver tu precio.
