SKU: UG-I500-H16-IN Categoría: Videovigilancia Inteligencia en el borde Marca: UNIVIEW

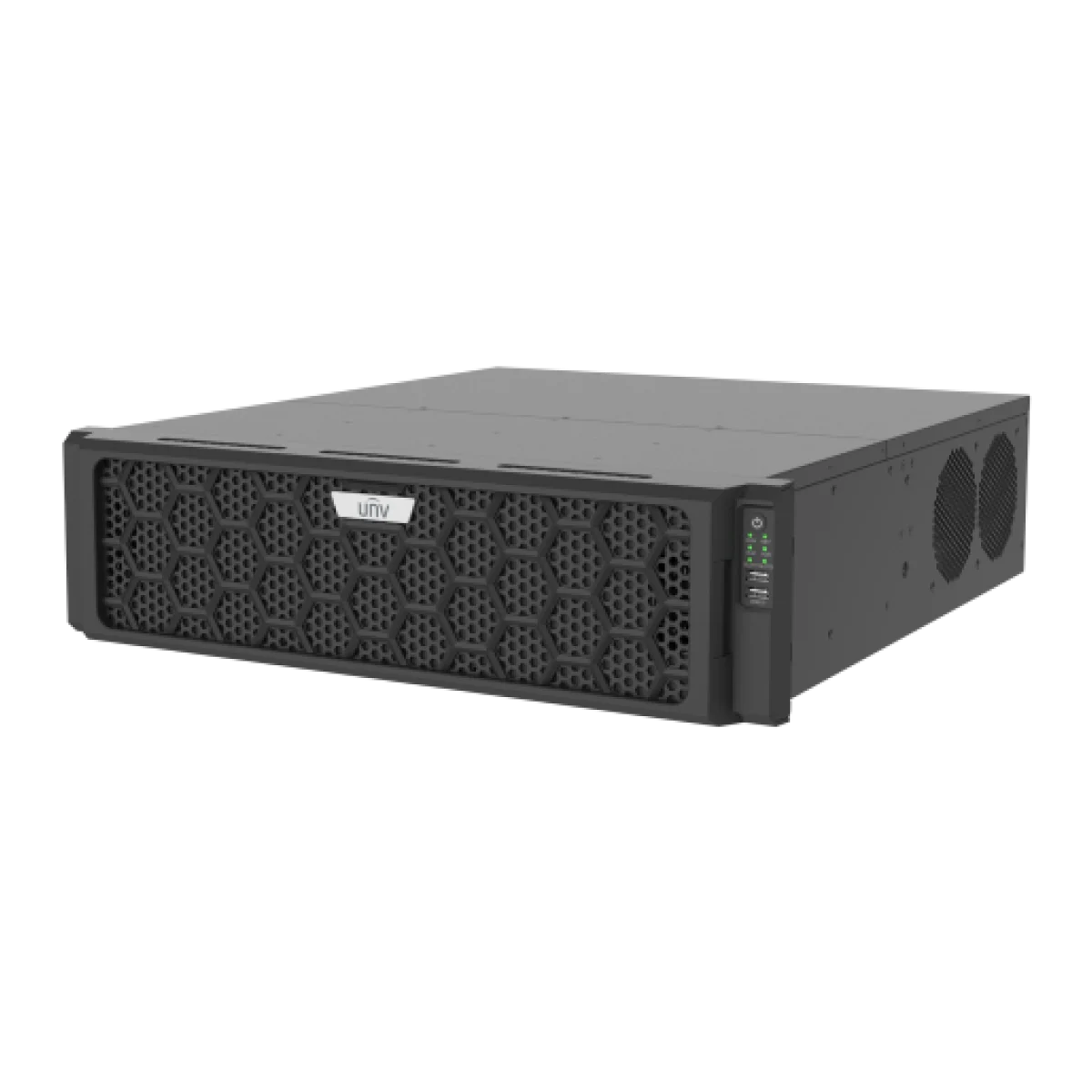

Plataforma IoT inteligente todo en uno 16 discos Uniview UG-I500-H16-IN

Name: Plataforma IoT inteligente todo en uno 16 discos Uniview UG-I500-H16-IN
Brand: UNIVIEW
SKU: UG-I500-H16-IN
Price: 43394000 COP
Availability: InStock

Datos principales del UG-I500-H16-IN: encoding devices 1000; video channels 2000; access control devices 300; video intercom devices (door station) 300; video intercom devices (indoor station) 2000; smart channels (including face detection, lpr, multi-target detection) 500.

$ 43.394.000

Garantía en Colombia · consúltanos el plazo
Se tramita aquí, con nosotros. Ver cómo

Importamos directo
Manejamos existencias y repuestos: no hay que esperar un pedido al exterior

¿Dudas antes de comprar? 302 326 3938
Te decimos si este equipo es el que te sirve

En obra: alimentación Standard 1 power module / Opcional dual power modules; consumo de ≤ 150 W (without HDD); trabaja en -10℃ to +55℃.

Especificaciones técnicas

Resource Management

Encoding Devices	1000
Video Channels	2000
Access Control Devices	300
Video Intercom Devices (door station)	300
Video Intercom Devices (indoor station)	2000
Smart Channels (including face detection, LPR, multi-target detection)	500
Cloud Devices	256
Onvif Devices	1000
Alarm Controllers	800
3rd-party integration, built-in DA	máx. 3 sets, incluidos 2 sets of SDK①

Storage Device

IPSAN	10

Event/Alarm(single item)

Events/Alarms without Images per Second	150
Events/Alarms with Images per Second	15
Push Events/Alarms to Client per Second	15

Organization

Organizations	1000
Organization Levels	26

User and Role

Roles	500
Users	2000
Maximum Number of Roles per User	32
Concurrent Online Users	50

Data Storage

Alarm Logs	10000000
Operation Logs (retention period)	6 months
Access Control Events	10000000
People Counting.	10000000
Visitor Records	10000000
Attendance Records	10000000
Vehicle Passing Records	10000000
Call Records.	10000000

Personnel

Persons	50000

Vehicle and Parking

Vehicles	10000
Vehicle Libraries	32
Parking Lots	8
Entrances & Exits	16
Lanes	32

Streaming Media

Receiving Bandwidth (Mbps)	650
Forwarding Bandwidth (Mbps)	650
Storage Bandwidth (Mbps)	650
Concurrent Central Storage Channels	256
Concurrent Central Playback Channels	30
Storage Bandwidth – RAID(Mbps)	160
Concurrent Central Storage Channels – RAID	80

P2P

P2P Receiving Bandwidth (Mbps)	250
P2P Forwarding Bandwidth (Mbps)	250

Disk Specifications

Maximum Capacity per Disk	20 TB

User Management

User Login	Multi-client loginStrong password policy, mandatory password reset at first loginRequires usuarios to read the privacy agreement at login
Login Management	Limit failed login attempts; block the IP address after 5 consecutive failed login attempts, with automatic unlock after 5 minutes
Strong Password Verification	Password strength enforcement; strong passwords required for cross-subnet access, with configurable policy (enable/disable)
Data Dashboard	Customizable titles y functional modules; supports full-screen display mode
Custom Menus	A user can customize menu display order y content within the scope of his/her menu permissionsAdd third-party apps, incluidos embedded programs (URL) y embedded webpage (URL)
EZCloud Service Agreement	EZCloud Privacy Policy, Uniview Cloud Access Privacy AgreementUser confirmation is required when enabling cloud-edge features; usuarios who decline can still use EZCloud functions independently.
Advanced Feature Configuration	Enable or disable system functional modulesCustomizable automatic client lock timeoutCustomizable alarm nameRestore por defecto settingsCustomizable logo, incluidos custom logo, background, y name on the login page, homepage, y top navigation barSoftware theme switching: dark mode / light mode / custom colorReplaceable software background image
Third-party Applications	Supports adding third-party clients or web pages as sub-modules within the software
User Management	Add,edit, delete, search usuariosSync user information from Windows AD domainView user listAssign one or more roles to a userConfigure user priority for PTZ controlReset passwords for other usuarios (only available to admin)Bind/unbind roles to/from usuariosLock/unblock user accounts
Role Management	Add,edit, delete, search rolesConfigure function access permissions; a role can only see the allowed functions/menusConfigure resource access permissions; a role can only see the allowed resources
Change Password	Allows usuarios to change their own passwordPassword recovery via security questions; preset security questions must be answered correctly to reset the password
Retrieve Password	Retrieve password via mobile phone number (China) or email address (outside China)

Device Resource Management

Organization Management	Add, edit, delete, search organizationsTotal hasta 26 levels (local domain y external domain)
Access Protocol	Private protocol y Onvif protocol
Access Methods	Device access via IP+puertos, DDNS+puertos, EZCloudDevice access via UNP
Device Types.	LAN devices: IPC, NVR, storage device, face detection access control terminal, video pared controller, entrance & exit ANPR camera, radar, Smart Box, video intercom device, alarm controllerAdd, delete, edit, search devicesBatch change device/channel namesView reasons for device offline statusCloud devices: IPC, NVR, face detection access control terminal

Room Management

Community Management	Add, edit, delete, search communities, buildings, units, y roomsBind residents with rooms, incluidos owners y tenants
Building Management	Add, edit, delete, search buildings
Unit Management	Add, edit, delete, search units
Room Management	Add, edit, delete, search roomsBind residents with rooms

Function Configuration

License Management	Activate licenseExport host file; import y view license info Deactivate license
Client configuration	Enable/disable pop-up alarm window
Switch Language	Choose client language (Chinese / Inglés)
Configuration Wizard	Configure which setup wizard modules appear on the homepage
Customer Service	View customer service phone number
Help Center	User manualView system notices, incluidos privacy policy y open source noticeView system version information

Storage Configuration

Platform Storage Configuration	Add, edit, delete, search (incluidos batch operations) storage schedules;schedule configuration includes: storage location, storage stream, storage policy, y retention period
Camera Storage Info Management	Add, delete, edit, search video channel storage configuration (excluding cloud device, UNP device)
Recording Backup	Configure manual backup for video channelsConfigured scheduled backup for video channelsStart/stop central recording
Storage Schedule Management	View, delete, start, stop storage schedule
Backup Task	Start, stop, delete, refresh backup tasksView the progress of ongoing video backupsRetry y resume backup tasks
Backup Configuration	Add, edit, delete, search (incluidos batch operations) backup schedules;backup schedule configuration includes: storage location, storage stream, storage policy, y retention period

E-map

Map Type	Supports two modes: image map y GIS online mapImage map: JPEG, JPG, y BMP formats, maximum resolution 8190*8190GIS map3D map: 3D/2.5D models Compatible gltf y 3dtiles formats, maximum file size 512MB
Map Operations	View live video/recording/image/alarm info of devices on the map; filter alarms by alarm level, alarm typeView device status on the mapSearch, locate devices on the mapView alarm statistics of the dayChoose a camera on the map to view live video of the 6 cameras closest to the selected camera; grid tracking during live view/playback

Service Configuration

Platform Time Configuration	Compatible UTC timezone configurationAllows manual modification of system timeConfigure date y time formats (options include: YYYY-MM-DD; MM-DD-YYYY; DD-MM-YYYY)
Holiday Management	Add, edit, search, delete holidaysMaximum duration for a single holiday is 30 days
Email Configuration	When enabled, requires configuration of: username, password, SMTP server, encryption type, SMTP puertos, sender address, y recipient address
Temperatura	Switch temperatura unit: Celsius/Fahrenheit
Data Sync Configuration	Specify access control devices to sync access records to a third-party database (customizable database address, puertos, etc.)Option to include or exclude failed verification recordsConfigurable to automatically re-sync once per hourEnable/disable automatic retransmission of failed data sync attempts
Video Intercom	Configure video intercom ringing duration (40–60 seconds)
Face Data Sync	Configure sync policy: sync feature data only, sync image y feature dataConfigure face image validation during enrollment
Automatic Time Sync	Supports automatic server time synchronization settings; configurable sync interval to push server time to devices
Alarm Input/Output Configuration	Supports filtering by alarm input y alarm outputSupports batch configuration of alarm types for alarm input/output channels
Card Attributes	Supports configuring alarm time attributes for pedestrians, faces, motor vehicles, y non-motor vehicles

Media Service Configuration

PTZ Control Configuration	PTZ release configuration (por defecto: 300 seconds; range: 30–3600 seconds)PTZ preemption policy configuration:New requester takes controlPriority + First requester takes controlPriority + New requester takes control

Disk Configuration

Local Disk	Local disk, disk status (normal, abnormal, offline, or partition does not meet configuration requirements), usage types (general purpose, recording storage, recording backup, hot spare)Configure RAID with local disks; create, delete, y rebuild RAID; RAID info (status, capacidad) ; Compatible RAID levels (RAID0/RAID1/RAID5/RAID6)
Network Disk	Add, edit, delete, search de red diskConfigure disk usage types: recording storage, recording backupView de red disk status: normal, abnormal, offline
Network Disk.	Add, edit, delete, search de red diskConfigure disk usage types: recording storage, recording backupView de red disk status: normal, abnormal, offline

Network Configuration

Network Configuration	de red configuration supports TCP/IP modeSupports configuration of HTTP, DNS, y alarm portsNetwork security supports HTTPS y SSHSupports manual route configuration on a specified de red interface Supports custom route configurationSupports single-domain dual-NIC configuration

CS Client Configuration

Client Parameter Configuration

Video processing mode: adaptive (por defecto), fluency priority, real-time priorityVideo stream transmission policy: adaptiveAuto-switch to the sub stream when the number of windows exceeds the set valueVideo stream service selection policy: adaptive, direct connection firstEnable GPU decodingWatermark: Embeds custom watermark into live or recorded videoSnapshot mode: auto (por defecto), manualSnapshot format: JPG (por defecto), PNGContinuous snapshot interval: 1-10s (por defecto: 1s)Number of continuous snapshots: 2-10 (por defecto: 3)Custom snapshot storage pathCustom path y format for saving local recordingsCustom path y format for saving downloaded recordingsRecording format: MP4 (por defecto), TSAlarm sound setting (custom audio)Audio playing count: 1-10Pop-up alarm window settingAudio file format: WAV, MP3, máx. 30MB per fileConfigure video intercom ringing duration

System Maintenance

System/Service Restart	Restart system/service manually
System Upgrade (Server Upgrade)	Local upgrade: upgrade through installation packagesImage backup: backup y restoration of images, incluidos configuration images such as face y vehicle images
Diagnostic Info	Package y export service operation logs
Operation Logs	Search user’s operation logs
Configuration and Data Backup	Automatic database backup: configurable backup interval (daily or weekly)

Device Operations & Maintenance

Device Diagnostic Info	Supports device diagnostics; diagnostic reports can be exported
Device Status Display	Shows the current online/offline statusShows the last offline timeCounts the total offline occurrences within a specified period (máx. span: 30 days)Calculates the total offline duration within a specified period (máx. span: 30 days)

Capacity Expansion

Primary/Replica

Primary/replica configuration (replica server)Automatic device allocationExpansion of device connection capacidad – Refers to the ability to increase the number of connected devices.Local Area de red (LAN): LAPI, Onvif, y GB/T1400 protocols, Compatible device types include IPC, NVR, face detection access control terminal, Smart Box, entrance & exit ANPR camera, y video intercom device.Wide Area de red (WAN): LAPI protocol, Compatible device types include IPC, NVR, y face detection access control terminal.Media capacidad expansion: Expansion of the bandwidth for receiving, forwarding, y storing media streams.Receiving capacidad expansion:-Expansion of the data receiving speed.Data type: Expansion of the speed for receiving alarms, images, events (conteo de personas, metadata).

Cascading (Private)

Resource cascading: Obtain y summarize resources from lower platformsData cascading: Full data reporting from lower platformsVideo cascading: the upper platform can view video resources on lower platformsPTZ control: all PTZ (Pan-Tilt-Zoom) functions, incluidos PTZ preemptionVoice services: audio broadcast, two-way audio

Cluster Management

Primary/Replica Management	Configure the local server role: Primary or ReplicaView primary/replica status
High Availability (HA)	Active/standby mode, automatically monitors service status y completes all-service failover

Protocol & Interconnection

EZCloud	Enable/disable EZCloud serviceAfter binding UMS to EZCloud, confirm UMS is online y syncing dataIn cloud-edge mode: Users can add, edit, or delete rooms, personnel, visitors, permission groups, schedule templates, y holidays on EZCloud, y search the corresponding information on UMS
OpenAPI	Authentication is required when third-party platforms access this platform’s OpenAPI

Radar Monitoring

Human Presence Detection	Add, edit, delete human presence detection tasks y receive alarm data
Conteo de personas	Add, edit, delete people counting tasks y receive real-time people count data y alarm data
Vital Signs Monitoring	Add, edit, delete vital signs monitoring tasks y receive alarms for abnormal vita signs
Fall Detection	Add, edit, delete fall detection tasks y receive fall detection alarm data

Cloud-Edge Collaboration

Basic Functions	Viewing edge-end channelsSupports P2P y TURN between edge service y appCloud receives alarms from edge service y pushes them to app
Cloud-Edge Services	Access permission managementRemote visitor pre-registration, pre-registration after invitationReview visitors remotely
Basic Data Sync	Sync basic data of organizationsSync basic data of personnel y departmentsSync basic data of devices y channels

Live View

Live View Media Stream Protocol	RTSP
Live View Auxiliary Screens	C/S client supports 1 main screen + 3 auxiliary screens; máx. 4 live view screens simultaneously
Live View Window Layout	Live view window layout: 1, 4, 6, 8, 9, 10, 13, 16, 17, 25, 36, 64 windowsSupports corridor modeSupports custom window layout, y Add y Delete operationsAllows user to save live video as group displaySupports closing all videos at once
View	Add, delete, edit, search views
Sequence Resource	Supports sequence by channel, sequence by viewAdd, delete, edit, search sequence resourcesSupports camera sequence y group sequence by organizationSupports resource statistics y refresh operations for sequence resources
Camera Sequence	Add, edit, delete camera sequence tasks; refresh organizations y generate resource statisticsStart, modify, delete camera sequence devices
Favorites	Add, delete, edit, search favoritesAdd devices to favoritesSupports statistics on resources in favorites
Live View Operations	Play live video by single channelPlay live video by viewPlay live video by sequenceView live video, preset, snapshot, continuous snapshots, digital zoom, 3D positioning (pan/tilt the camera, drag the mouse to zoom in/out)Supports AcuSearch y AcuTrack, usuarios can drag the mouse to select a target in the live video image y initiate an instant search with one click
Transport Protocol	Adaptive
NAT (LAPI uses P2P for NAT traversal)	One side has a single-layer NATEach side has a single-layer NATNo NAT
Start/Stop Live View	Single-channel live video, multi-channel live videoStart live video by main stream, sub stream, adaptive mode
Resume Live View	Automatically resumes live view after a restart of the client, device, or service
Stream Transmuxing Policy	GB stream, RTP stream
Image quality	Main stream, sub stream, third stream
Back-end Fisheye Dewarping	Mounting mode: Montaje en techo, pared mount or desktop mountDisplay mode: 360° Panoramic, 180° panoramic, Fisheye, y PTZ
Panoramic Linkage	Manual tracking, auto tracking

Batch Play

Camera Resources	Single window + multi-camera sequence
View Resources	Multi-view sequence

Movimiento PTZ

PTZ Control	Drag-to-zoom3D positioningConfigure preset positions; máx. 255 per cameraSync presets (get presets)Configure home position (auto-guard)Control rotation direction (pan/tilt)Lock/unlock PTZSet rotation speedZoom in/outFocus near/farPreset patrolRecorded patrolStart/stop patrolAdjust irisEnable/disable wiper
Control permission management	Enables high-priority usuarios to preempt PTZ control from low-priority usuariosConfigurable preemption policy for usuarios with the same priority levelAutomatically releases PTZ control when PTZ is not locked y there’s no activity for a certain length of timeConfigurable auto-PTZ-release time
Patrol Route Configuration	The maximum number of commands in a patrol route is unlimitedPatrol command duration, range: 5-300 seconds, por defecto: 10 seconds, supports endless rotationPreset stay time; range: 5-30 seconds, por defecto: 10 seconds
Patrol Plan	máx. 1 patrol plan per cameraMax. 8 patrol routes per patrol plan
Auto Guard	Automatically returns to the guard position after being idle for a certain length of time (time is configurable)máx. 8 time periods per auto guard schedule

Playback

Auxiliary Screens	Supports 1 main screen + 3 auxiliary screens; máx. 4 playback screens simultaneously
Playback Transport Protocol	TCP, UDP
Playback Media Service Policy	Adaptive, Direct Connection First
Playback NAT (LAPI uses P2P for NAT traversal)	One side has a single-layer NATEach side has a single-layer NATNo NAT
Recording Source	Device recordingCentral storage recordingNetwork storage recordingLocal recording file
Recording Search	Supports recording search by start time, storage location (front-end recording, central recording, fuzzy search), search domain (registered domain, current domain, cloud search), recording type (alarm recording, manual recording, all recordings)
Playback Control	StartStopPauseResume1x forwardFast forward (16×, 8×, 4×, 2×)Slow play (0.5×, 0.25×, 0.125×)Fast rewind (-1×, -2×, -4×, -8×, -16×)Drag progress bar to navigate through videoZoom in/out on progress barClick to adjust progress barPlay next frameForward by frameSkip to play event/alarm recordings onlyLock recordingTag recordingPlay recording files, full-frame forward, extracted-frame rewindStart playback, forward 30s, rewind 30s, configurable forward/rewind timeMulti-channel synchronous playbackPlayback via relay
Recording Download	Download format: MP4, TSMulti-channel recording download: Hasta 2 concurrent channelsView active download tasks y real-time progressPause, cancel downloadRetry, resume downloadRecording download list32x speed download
Recording Download Task	View, delete recording download tasks
Media Stream Protocol	RTSP

Local Recording

Recording to Local PC	MP4 y TS formatsStart/stop recordingAutomatically stops recording when the media stream stops

Local File Playback

Local File Playback	MP4 y TS formatsStart/stop recordingAutomatically stops recording when the media stream stops

Audio

Stream Audio	Device-side audio formats: AAC/G711a/G711u
Two-Way Audio	Two-way audio/broadcast with/to devicesTwo-way audio with channelBatch broadcast by organizationDevice-side audio formats: AAC / G.711a / G.711u
Audio Broadcast	Broadcast to devicesBroadcast to channelsClient-side audio format: G711u

Video Wall

Video Wall Resource Management	Add, edit, delete, search video pared resources1-10/13-16 window layoutsVideo pared preview
Video Wall Configuration	Open/close windows, roam, overlay, zoom in/out; always display on top/bottom, split window, switch to full screenConfigure scenes, scene sequenceScreen control: turn on/off screens through UA, UA-A, MODBUS protocols; turn off screens with a delay or at a set time
LED/LCD Splicing Display Control	Supports small pixel pitch LED.
Virtual LED Enhancement	Configure LED font, rows, length, scrolling speed, scrolling mode, alignment, y transparency;Hasta 4 virtual LEDs per scene Font size supports adaptive y any even value within the range [48–1024] Available fonts: SimHei, KaiTi, SongTi Hasta 32 rows per virtual LED Static virtual LED supports hasta 300 bytes of text; scrolling virtual LED supports hasta 100 bytes of text Scrolling modes: Static, Left-to-Right, Right-to-Left, Top-to-Bottom, Bottom-to-TopScrolling speed: 1x–10x (1x = slowest, 10x = fastest)Vertical alignment: Top, Center, BottomHorizontal alignment: Left, Center, RightBackground transparency: Adjustable from opaque (0%) to fully transparent (100%)
Live View on Video Wall	Start/stop main/sub streams of video channels on video wallStart/stop main/sub streams output from video pared controllers on video wallPlay single channel, scene, group sequence, video signal source on video wallPlay group sequence in a single video pared window
Playback on Video Wall	Control playback progress on video wallStop playback on video pared by closing the Web/CS clientPlay recordings from lower platform on video pared
Group Sequence Control	Supports operations incluidos start, stop, pause, play previous/next
Scene Operations	Start scene
Media Service Policy	AdaptiveDirect Connection First
Stream Transmission Protocol	TCP, UDP
Network Keyboard Control	Start live video on video pared through de red keyboardControl playback (forward/rewind) y playback speed adjustment through de red keyboardControl PTZ (pan-tilt-zoom) through de red keyboard
Video Wall Type	DX video pared: Created using channels of decoder/video pared controllerStart live video by dragging cameras to video pared; supports live view, camera sequence on video wallMulti-DC video wallStart live video by dragging cameras to video pared; supports live view, camera sequence on video pared

Smart live view

Smart Live View

Smart live view mode: Live view operations, local recording, two-way audio, etc.; view pedestrian/motor vehicle/non-motor vehicle records;Detección de rostros mode: Live view operations, local recording, two-way audio, etc.; view snapshot records y comparison records;Vehículo application mode: Live view operations, local recording, two-way audio, etc.; view gate opening/closing events, vehicle passing records, comparison records;Access control mode: Live view operations, local recording, two-way audio, etc.; view door opening/closing events, access records;Multi-target detection mode: Live view operations, local recording, two-way audio, etc.; view pedestrian/motor vehicle/non-motor vehicle records, face records;People counting mode: Live view operations, local recording, two-way audio, etc.; conteo de personas (counting by area, add/edit/delete/search areas, conteo de personas statistics)Crowd density detection (detection by area, add/delete/edit/search areas, detection statistics)

Smart Live View.

Different smart live view modes available, incluidos: smart live view, face detection, vehicle application, access control, multi-target detection, y people counting modesIntelligent mark on live videoCustom attributes display

Media Configuration

Video Parameters	Media stream service selection strategy: Adaptive / Direct Connection FirstMedia stream transmission protocol: TCPPlayback/download to server: Adaptive / Direct Connection FirstRecording playback protocols: TCP / UDPAuto-switch to the sub stream when the number of windows exceeds the set value (configurable range: 1-64)Enable/disable Packet Reordering, Anti Packet Loss, GPU Decoding, Intelligent Mark, Playback PreviewSupports restoring por defecto settings
Snapshot Parameters	Continuous snapshot interval: 1-10s (por defecto: 1s)Continuous snapshots: 2-10 (por defecto: 3)Snapshot format: JPG, PNGRestore por defecto settings: Compatible
Recording Parameters	Local recording format: mp4, tsRecording download format: mp4, tsRestore por defecto download settings: Compatible

Player Functions

Local snapshot: Single y continuous snapshot during live view y playbackVolume control: Adjust audio volume during live view y playbackDigital zoom: Digital zoom on video during live view y playbackLocal recording: Manually start/stop local recordingCustomizable recording file nameConfigurable recording save pathSave recordings in MP4 or TS formatFisheye dewarping: supports mounting mode (techo, pared, desktop) y display mode (360° Panoramic, 180° panoramic, Fisheye, y PTZ)

Alarm Center

Alarm Integration	Supports alarms from GB/ONVIF/LAPI devicesManually trigger emergency event alarmsAllows third-party to customize alarms based on our interfaces
Alarm Subscription	Alarm subscription by userAlarm subscription by external domain (higher platform subscribes to alarms from current platform)Configurable subscription template name, subscription template description, alarm level, alarm type, y device list
Alarm Aggregation	Multiple alarms of the same source y type within the specified period are reported only once
Pop-up Alarm Window Control	When an alarm is triggered, a global pop-up displaying the alarm details appears in the bottom-right corner of the interface, accompanied by an alarm sound
Alarm Sound	Configure audio name, upload audio file, link with alarm type
Alarm Linkage Actions	Pop-up live video of the linked cameraPTZPlay live video on DX video wallPlay recorded video of the linked cameraRecord videoBack up recordingOutput alarmClose live view windowSend emailSend textPlay audioOpen/close doorOutput alarm on the linked camera
Real-Time Alarm	Real-time pop-up alarm window allows for immediate viewing of alarm information When an alarm is triggered, real-time alarm info appears in a pop-up window in the lower right corner Point operations:Camera: Live view, playback, y play video on video wallDetección de rostros access control terminal / access controller: open/close door, keep door open/closed, restoreDetección de rostros access control terminal: clear alarms with one-click
Historical Alarm	View historical alarm records, handle alarms Search alarms by alarm time, alarm device, alarm type, alarm level (critical/major/minor/warning/alert), handling result (unhandled/confirmed/false alarm), handling user, y alarm description Export partial or all search resultsManually generate alarms
Alarm Statistics	View alarm statistics trends y various types of alarms by time y device Search criteria: collect alarm statistics by time (day/week/month) y device Statistical chart: incluidos trend chart (statistics based on time) y bar chart (displaying the number of alarms by alarm type) Hover over to view the number of alarms View detailed alarm counts Export results
Alarm Handling	Confirm device alarmsPush device alarms to clientPush device alarms to external domain

Dual-Server Hot Standby

Dual-Server Hot Standby	Active/standby modeMonitors service status y auto-recovers on the same node when possibleFails over to standby if local recovery failsStandby seamlessly takes over all services (live view, video pared, storage) y resumes active services

Face Management

Face Library Management	Add, delete, edit, search face libraries; sync face libraries to devices; add, delete, edit, search person info
Personnel Info Management	Set important person libraries to manage the monitoring of important persons

Face Monitoring

Monitoring Task	Face library monitoring based on the private protocolFace monitoring based on the VIID protocol (Compatible in China)

Real-time Data

Real-Time Monitoring	Smart live view (display live video of face detection camera), shows captured person info, shows match/not match alarms generated for monitoring tasks

Person Comprehensive Search

SeekFree (person)	Enter text to search across multiple NVRs for matching persons (leveraging the SeekFree-capable NVRs)
Face Search	Search by attribute, alarm (face match alarm / face not match alarm), y appearance frequency; export search results.Search by image (using NVR for image search) to retrieve face records; with search criteria incluidos capture location, similarity, y capture time.Search by appearance frequency; with search criteria incluidos capture location, appearance frequency, similarity, face library, y capture time.Face trajectory search supports drawing y displaying person movement trajectories on e-map; trajectory playback at specified locations
Pedestrian Search	Search for pedestrians matching specified attributes, with custom search criteriaSearch by image, with search criteria incluidos snapshot location, similarity, y snapshot time

Comprehensive Search

Motor Vehicle	Search by vehicle attributes, search by alarm events, search by image, y search by violation records1. Search by vehicle attributes: supports search criteria incluidos snapshot location, snapshot time, license plate number, vehicle type, license plate color, license plate type, driving direction, speed type, vehicle color, y vehicle attributes. Search results Compatible search by image, export, displaying full snapshots, recordings, y motor vehicle attributes; supports viewing vehicle trajectories.2. Search by alarm events: supports search criteria incluidos vehicle monitoring type, snapshot location, snapshot time, license plate number, license plate color, y vehicle color. Search results Compatible search by image, export, displaying full snapshots, recordings, y motor vehicle attributes; supports viewing vehicle trajectories.3. Search by image (requires smart NVR): supports search criteria incluidos snapshot location, snapshot time, similarity, y vehicle image (1 image, 10KB-1MB; the uploaded image must be JPG); supports displaying full snapshots, recordings, y capture details; supports viewing vehicle trajectories.4. Search by violation records: supports search criteria incluidos snapshot location, snapshot time, violation type, y owner name. Search results Compatible export; supports viewing vehicle trajectories.
Non-Motor Vehicle	Search by attributes, search by image1. Search by attributes: supports search criteria incluidos snapshot location, snapshot time, vehicle type, driving direction, y speed; search results Compatible search by image, export, y displaying full snapshots, recordings, y non-motor vehicle attributes.2. Search by image (requires smart NVR): supports search criteria incluidos snapshot location, snapshot time, similarity, y non-motor vehicle image (1 image, 10KB-1MB; the uploaded image must be JPG); supports displaying full snapshots, recordings, non-motor vehicle attributes, y vehicle trajectories.
SeekFree	Enter text to search across multiple NVRs for matching motor vehicles/non-motor vehicles (leveraging the SeekFree-capable NVRs)

Real-Time Monitoring

Live View	View live video from access control devices, real-time door lock status, real-time access info
Remote Control	Supports remote operations: open/close door, keep door open/closed, restoreSupports displaying by custom groups, supports one-click to keep door open/closed, restore

Personnel Management

Department Management

Add, edit, delete, y search departments

Personnel Management

Supports personnel information enrollment, incluidos personnel ID, name, ID number, validity period, etc., with search capabilities.Information entry includes: personnel ID (required), name (required), ID number, ID type, access validity period, date of birth, gender, mobile phone number, department, address, remarks, door opening password, room information, face photo, vehicle information, access card (supports card issuance y card return), fingerprint, permission group, face librarySupports custom attributes for personnel records.Supports import y export of personnel information y images.Multiple data capture methods, incluidos: face&ID card verification devices, USB cameras, face detection access control terminals

Access Permission Configuration

Permission Group Management	Add, delete, edit, search permission groupsSync permissions, incluidos auto sync (por defecto mode) y manual sync Assign permissions by person, door, department, building
Authentication Mode	Face, card, password, fingerprint
Schedule Template	Add, delete, edit, search schedule templatesLink holiday schedules, weekly schedules; each schedule template can link with hasta 16 holiday schedules

Permission Search

Access Permission Search	Search personnel permission by name, sync status, access control point range, building, person/department

Advanced Configuration

Advanced Configuration	Set door channel name, door open timeout, duress code, alarm trigger threshold for excessive authentication attempts, whether to receive abnormal door opening alarms

Access Control Events

Access Records	Obtain access records from devicesView, export access records

Access Control Personnel Management

Image Pre-processing	Image correction
Face Feature Management	Extract feature data through access control devices, sync feature data

Multi-Factor Authentication

Person Group	Add/delete/batch deleteBind by department/personView personnel group list
Authentication Group	Add/delete/batch deleteCopy authentication groupView personnel group list
Authentication Group Configuration	Bind door channelsSet schedule template/validity period/authentication interval/concurrent authenticationsEnable/disable authentication group

Anti-passback

Anti-passback Rule Configuration	Add/delete/batch deleteSet area anti-passback/route anti-passbackSet schedule templateEnable/disable anti-passback
Bind Access Control Devices	Configure single-controller anti-passback y cross-controller anti-passback

Multi-Door Interlocking

Rule Configuration	Configure rules based on access control devicesView configuration list

Basic Configuration

Floor Configuration	Add, edit, delete floorsSet control mode (free mode/forbidden mode/controlled mode), por defecto is free mode
Device Binding	Bind/unbind cameras, access control devices, etc.Search the bound device list, show device name, IP address, device ID, serial number, device type, location of the linked elevator controller, status, operations (e.g., relink elevator controller)
Parameter Configuration	Set records, incluidos reporting type (upload all/successful records), storage mode (stop/overwrite when storage is full), card typeSet manual call response time (outside/inside elevator)Set automatic call trigger timeSupports multiple elevator call methods (door station verification/door station call/interior station call/manual call + in-elevator verification)

Permission Configuration

Verification Configuration	Add, delete, copy verification templatesAdd, delete verification configurations
Permission Configuration	Bind personnel/visitors with elevator controllersConfigure schedule templatesView permission list, show name, personnel ID, elevator control permissions, sync status, operations (sync permission)

Elevator Control

Elevator Control Live View	View live video from the linked cameras/door stations to monitor the elevator’s real-time status
Elevator Control Verification Records	Search elevator access records to monitor the elevator usage history
Alarm Function	Integration with fire alarm systems to trigger linkage actions

Video Intercom Configuration

Device Types	Compatible interior stations, door stations
Device Operations	Bind devices with rooms, bind rooms with interior stations, remotely control door stations to open doors
Call Recipient Management	Add, delete, edit, search call recipients
Contacts	Contacts management, use contacts to call interior stations

Video Intercom Call

Call Answering	Door station calls management center, interior station calls management center, management center calls interior station
Call Records	View call y answer records

Video Intercom Alarm

Video Intercom Alarm Receiving	Receives alarms from interior stations y door stations

Visitor Management

Visitor Registration	Enroll visitor face images y license plates (integrated with access control y checkpoint systems for entrance & exit management), custom visitor attribute fields, configure visitor permissionsSearch registration records by: registration time, visitor type, visitor name, mobile phone number, feature extraction status, host name, y ID numberExtract face feature via access control devices for sync, with option to re-extractEnroll visitors via face&ID verification terminals, with quick navigation to terminal enrollment mode settings
Visitor Preregistration	Visitor preregistration through the mobile client (requires the app to enable Cloud-Edge mode)
Visitor Review	Visitor review through the mobile client (requires the app to enable Cloud-Edge mode)
Visitor Sign-Out	Sign out visitors manuallyConfigure an automatic sign-out time; the system automatically signs out all visitors who have not manually signed out at the specified time

Visitor Records

Visit Records	Search visitor access records by: registration time, visitor type, visitor name, mobile phone number, host name, y ID numberExport, delete visitor records

Area Monitoring

Area Monitoring	Set area monitoring tasks that trigger alarms when a visitor is detected in a restricted area or outside permitted time periodsSet a face similarity threshold; alarms are triggered when the similarity exceeds the set threshold
Permission Search	Search by device status y device scopeSync, refresh permissions

Attendance Configuration

Attendance Rules	Set automatic attendance calculation time (por defecto: 5 a.m.)
Staff Schedule	Set time periods, manage shifts y schedules (assign shifts to staff members/departments)
Holiday	Holiday configuration

Attendance Handling

Leave	Handle leaves/business travels
Re-Sign In&Out	Re-sign in or out, view re-sign in&out records

Attendance Statistics

Original Data	Search y export original attendance data
Attendance Details	Search, export detailed attendance data; calculate attendance
Attendance Summary	Summarize y export attendance data

Attendance Data

Data Export	Export attendance data to an Excel file
Data Sync	Sync data to a third-party database (MySQL, PostgreSQL, SQLServer)

Counting Resources

Counting Area Management	Includes conteo de personas area y crowd density monitoring areaAdd, delete, edit, search counting areasSupports quick navigation to smart live view for real-time people flow statistics

Counting Operations

Real-Time Statistics

Realtime statistics: View live video from people counting cameras with people counting statisticsConteo de personas: Displays the number of people that have entered, the number of people that have exited, the number of people allowed to enter, the number of people present, y passage statusCrowd density monitoring: Displays the number of people allowed to enter, the number of people present, y area status

Statistical Report

(Only available to conteo de personas) Displays counting statistics by month/day/hour/minute; displays statistics as a chart or table

Patrol Management

Patrol Point Type	Patrol readerDetección de rostros access control terminal, access controller
Patrol Route	Add, delete, edit, search patrol routes
Patrol Method	6 patrol methods available: All Random, First Point Fixed, First y Last Points Fixed, All Points Ordered (Random Interval), All Points Ordered (Fixed Interval), All Points Ordered (Custom Interval)
Patrol Schedule	Add, delete, edit, search patrol routes; configure schedule details, holidays, y patrollers
Patrol Records	Search patrol records by time, patrol points, etc.

CPU

Procesador	Intel Core i3-8100 @3.6GHz

Operating System

Operating System	Ubuntu-24.04.2

Memory

Memoria	32 GB

System Disk

System Disk	SSD 128 GB

Storage Disk

Storage Disk	SATA x 16eSATA x 1, miniSAS x 2

Video Output

Salida de vídeo	HDMI x 2, VGA x 1

Network Interface

Interfaz de red	GbE x 4

USB

Puertos USB	USB2.0 x 2, USB3.0 x 2

Alarm Input/Output

Alarm Input/Output	24 x alarm input, 8 x alarm output

Audio Interface

Audio Interface	RCA 1 x input, 1 x output

Serial Interface

Serial Interface	RS232: RJ45 x 1RS485: RJ45 x 1

Dimensions (L× W x H)

Dimensions (L× W x H)	533 mm x 481.6 mm x 131.5 mm

Net Weight

Net Weight	<13KG

Operating Temperature

Temperatura de trabajo	-10℃ to +55℃

Operating Humidity

Humedad de trabajo	10% a 90% (sin condensación)

Power Consumption

Consumo	≤ 150 W (without HDD)

Power Supply

Alimentación	Standard 1 power module / Opcional dual power modules

Referencia del fabricante: UG-I500-H16-IN. Datos tomados de la ficha técnica oficial de Uniview. Producto original con garantía, distribuido por Mundo Tech Colombia. ¿Eres instalador o integrador? Inicia sesión con tu cuenta mayorista para ver tu precio.

Tipo	Servidor

Valoraciones

No hay valoraciones aún.

Sé el primero en valorar “Plataforma IoT inteligente todo en uno 16 discos Uniview UG-I500-H16-IN”
