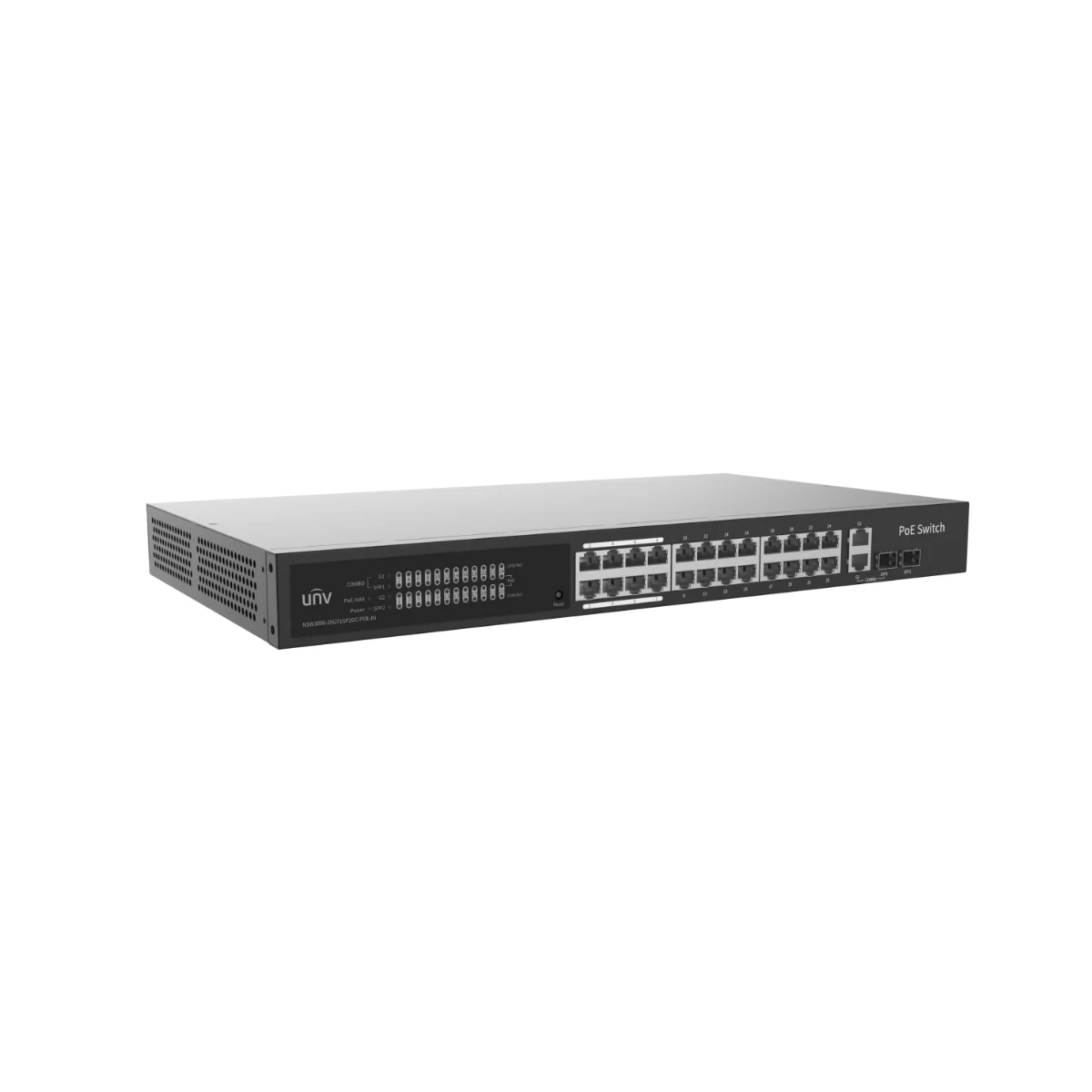

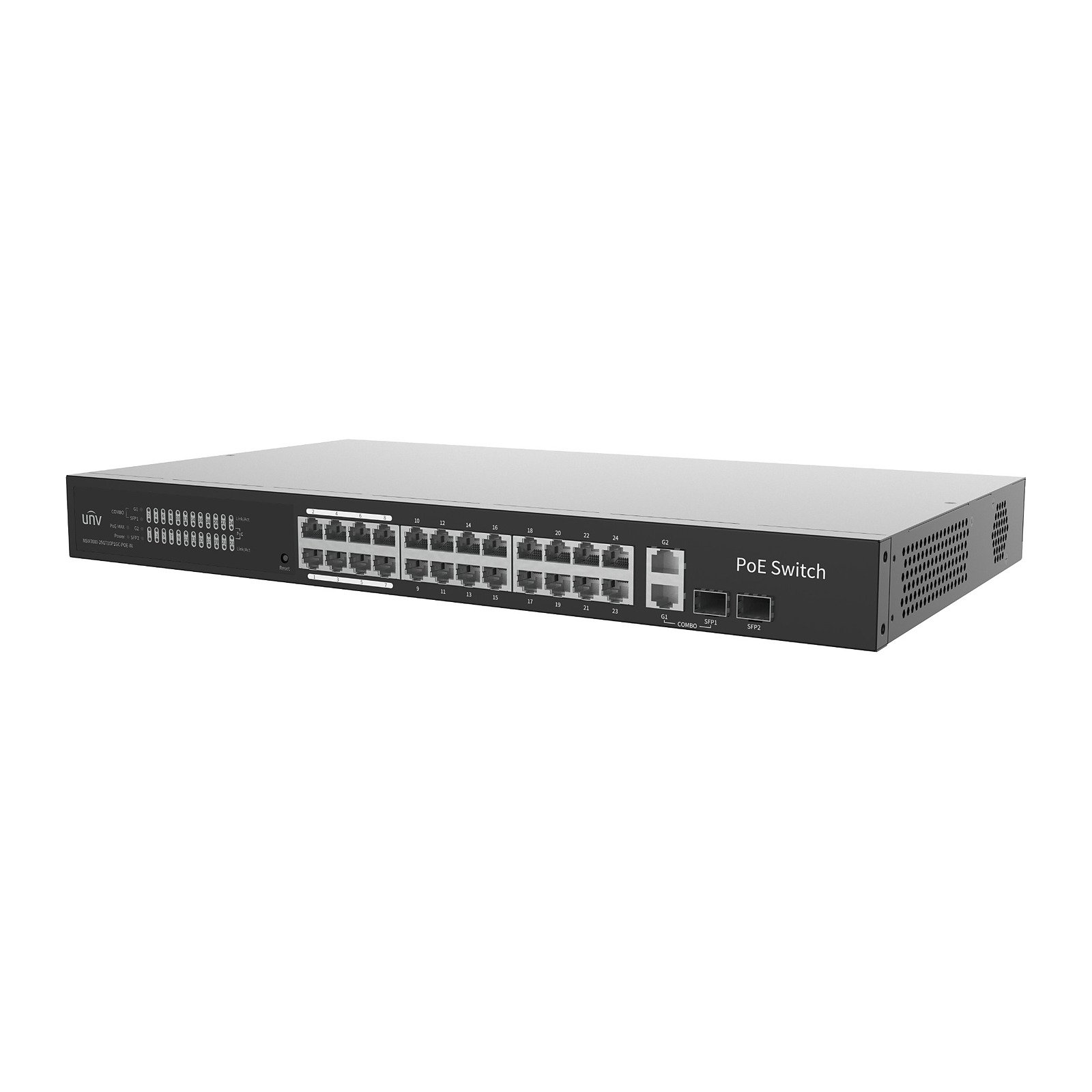

Switch PoE de gestión en la nube Gigabit 25 puertos Uniview
El NSW3000-25GT1GP1GC-POE-IN es un switch con 24 x 10/100/1000 Mbps puertos PoE (RJ45) 1 x 10/100/1000 Mbps puertos (RJ45) 1 x Gigabit SFP 1 x Gigabit Combo, con una capacidad de conmutación de 54 Gbps.
PoE Allows to view PoE status y power.Allows to enable/disable PoE power supply.
$ 1.075.000
Productos relacionados
El NSW3000-25GT1GP1GC-POE-IN es un switch con 24 x 10/100/1000 Mbps puertos PoE (RJ45) 1 x 10/100/1000 Mbps puertos (RJ45) 1 x Gigabit SFP 1 x Gigabit Combo, con una capacidad de conmutación de 54 Gbps.
Alimenta cámaras y equipos por PoE según IEEE 802.3af, IEEE 802.3 at, con un presupuesto total de Maximum total power: 370 W; Maximum PoE power por puertos: 30 W.
Cumple las normas IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az.
En obra: alimentación AC: 100 a 240V, 50/60Hz; trabaja en 0°C a 45°C.
Especificaciones técnicas
Hardware
| Puertos | 24 x 10/100/1000 Mbps puertos PoE (RJ45) 1 x 10/100/1000 Mbps puertos (RJ45) 1 x Gigabit SFP 1 x Gigabit Combo |
|---|---|
| Normas | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az |
| Capacidad de conmutación | 54 Gbps |
| Rendimiento de reenvío | 40.176Mpps |
| Búfer de paquetes | 4 M bit |
| Tabla MAC | 8K |
| Peso | 2.98kg |
| Dimensiones (an × pr × al) | 440*244.8*44 mm |
| Norma PoE | IEEE 802.3af, IEEE 802.3 at |
| Potencia PoE máxima | Maximum total power: 370 W; Maximum PoE power por puertos: 30 W |
| Modo PoE | ModeA (1236), ModeB (4578) |
| Alimentación | AC: 100 a 240V, 50/60Hz |
| Potencia máxima | 390 W |
| Puertos prioritarios | 1 a 8 |
| Ventilación | 1 |
| Humedad de trabajo | 5% a 90% HR, sin condensación |
| Temperatura de trabajo | 0°C a 45°C |
| Indicadores | Power:Off: Abnormal power input.Green: Normal power input.PoE:Off: The puertos PoE is not supplying powerSteady on: The puertos PoE is supplying power normallyLink/Act:Off: Disconnected to the portOn: Connected to the portBlinking: Transmitting dataMAX: Off: The total PoE power is less than 80% of the total power of the deviceSteady on: The total PoE power is higher than 85% of the total power of the device |
Software
| Ethernet | Supports full duplex, half duplex, y auto-negotiation de trabajo modes.Supports puertos auto-negotiation rate.Supports puertos priority flow control. Supports a link aggregation group (consist of two de subida puertos) Supports puertos flow statistics Supports enabling/disabling puertos |
|---|---|
| VLAN | Supports both access y trunk modes; allows hasta 32 V; LANs with IDs from 1 a 4094 |
| Tabla MAC | Compatible (hasta 8K) .Supports clearing the dynamic MAC address |
| PoE | Allows to view PoE status y power.Allows to enable/disable PoE power supply. |
| Detección de bucles | Loop Detection |
| QoS | Supports puertos rate limitation.Supports broadcast storm control. |
| Seguridad | Supports puertos isolation (only for the downlink puertos)Supports locking login IP address, hasta 64 addresses can be locked |
| Mantenimiento | Supports N: 1 puertos mirroringSupports unified software configuration, management, y searchSupports discovering the connected video devices y generating a de red topology on the software.Supports device upgrade, factory settings restoration, configuration import, configuration export, logs export, y device restart on the software. |
| Sistema | Allows to view the device name, device model, serial number, current version, IP address, MAC address, DNS, operation time, etc.Allows to edit y manage the IP address y device nameSupports single-user management, user authentication, y password modification Allows to view other switches information on the same de red, hasta 32 switchesAllows to view the connected video devices information, hasta 64 devices |
Normativa
| Cumple NDAA | Compatible |
|---|
Referencia del fabricante: NSW3000-25GT1GP1GC-POE-IN. Datos tomados de la ficha técnica oficial de Uniview. Producto original con garantía, distribuido por Mundo Tech Colombia. ¿Eres instalador o integrador? Inicia sesión con tu cuenta mayorista para ver tu precio.
| Tipo | Switch |
|---|
